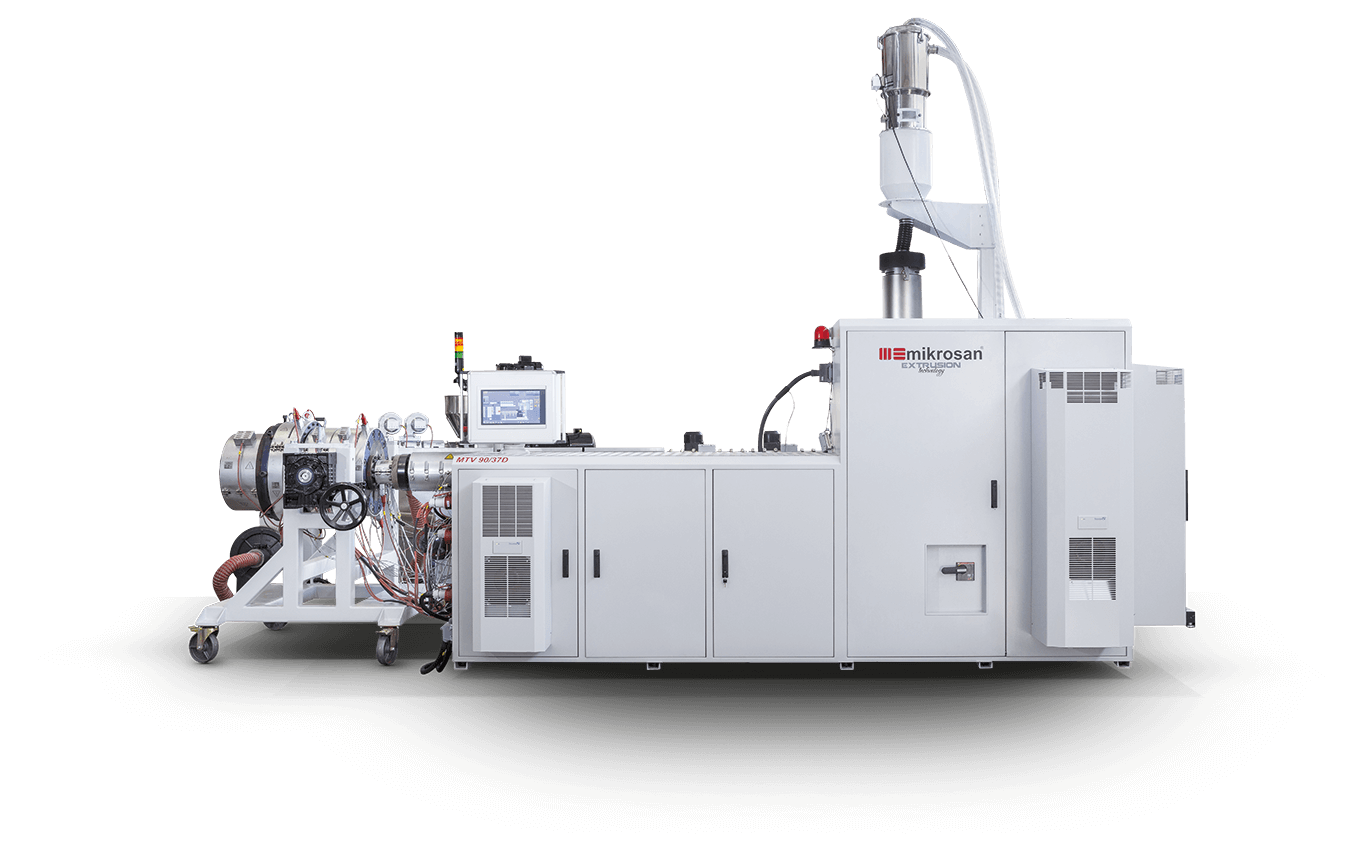

Single-Screw Extruder

LS Series

Model	L/D Oranı	Motor Gücü [kW]	Vida Devri [devir/dk]	HDPE Kapasite maks. [kg/h]	PP-R Kapasite maks. [kg/h]
MTV 45/30D LS	30	30	163	120	80
MTV 45/37D LS	37	50	222	200	140
MTV 60/37D LS	37	73	289	300	210
MTV 75/37D LS	37	92	108	400	300

HP Series

Model	L/D Ratio	Motor Power [kW]	Screw Speed [rpm]	HDPE Max. Capacity [kg/h]	PP-R Max. Capacity [kg/h]
MTV 45/30D HP	30	50	237	200	140
MTV 45/37D HP	37	92	312	350	250
MTV 60/37D HP	37	149	317	550	400
MTV 75/37D HP	37	186	218	800	500
MTV 90/37D HP	37	400	147	1100	700
MTV 45/40D HP	40	70	250	500	350
MTV 60/40D HP	40	184	296	800	550
MTV 75/40D HP	40	288	235	1200	800
MTV 90/40D HP	40	425	207	1700	1200

Water-cooled grooved feeding barrel

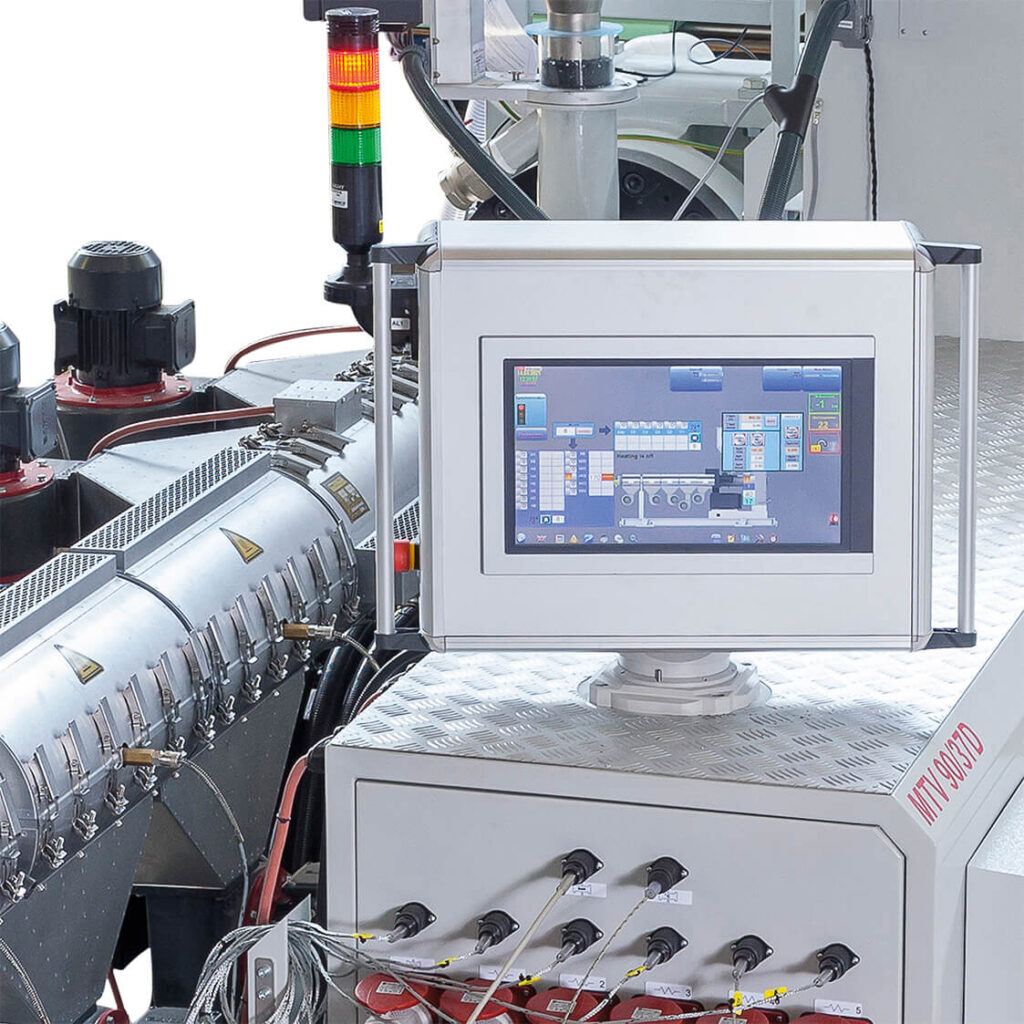

Touchscreen control panel
User-friendly interface developed by Mikrosan
AC servo motor and driver
High-efficiency gearbox
Optional integrated gravimetric dosing system
Components of Turkish and European origin

Advantages

The LS and HP series extruders feature proven, powerful machine technologies designed for continuous and high-efficiency production.
The screws and barrels are specially designed according to the application and customer requirements.
The screws and barrels are entirely manufactured within Mikrosan, including heat treatment and nitriding processes.
