PO Pipe Lines

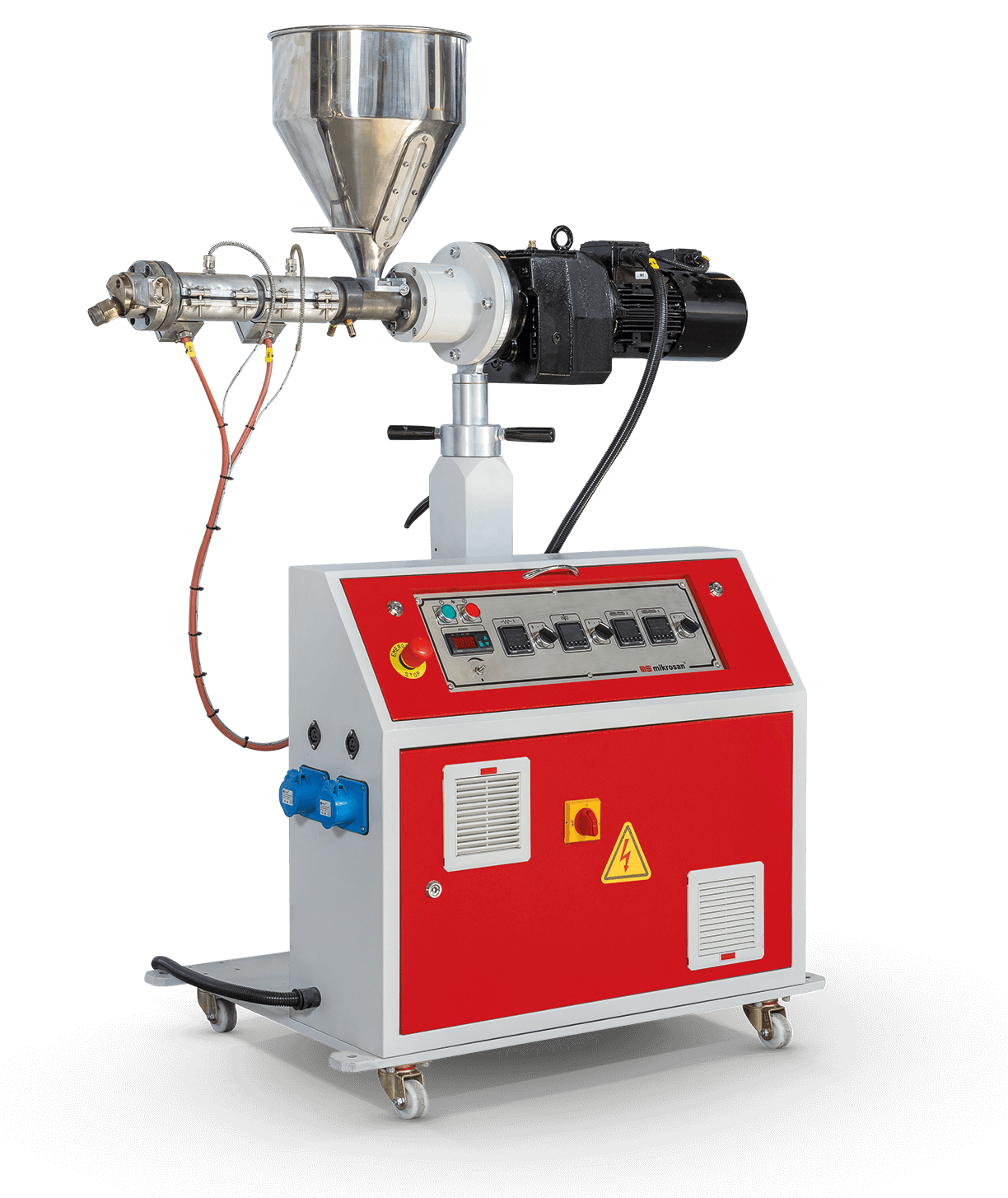

Single-Screw Co-Extruders

MTV Series
ModelL/D RatioMotor Power [kW]Screw Speed [rpm]HDPE Max. Capacity [kg/h]PP-R Max. Capacity [kg/h]
MTV 20/20D200.55120.50.4
MTV 25/25D252.26054
MTV 30/25D255.51121510
MTV 35/25D257.51162518
  • Water-cooled raw material feeding
  • Analog control panel
  • Operation via independent control panel or from the main machine panel
Advantages
  • The pipe series co-extruders are machines designed for easy and flexible use across various applications.
  • The screws and barrels are specially designed according to the application and customer requirements.
  • The screws and barrels are entirely manufactured within Mikrosan, including heat treatment and nitriding processes.
