PO Pipe Lines

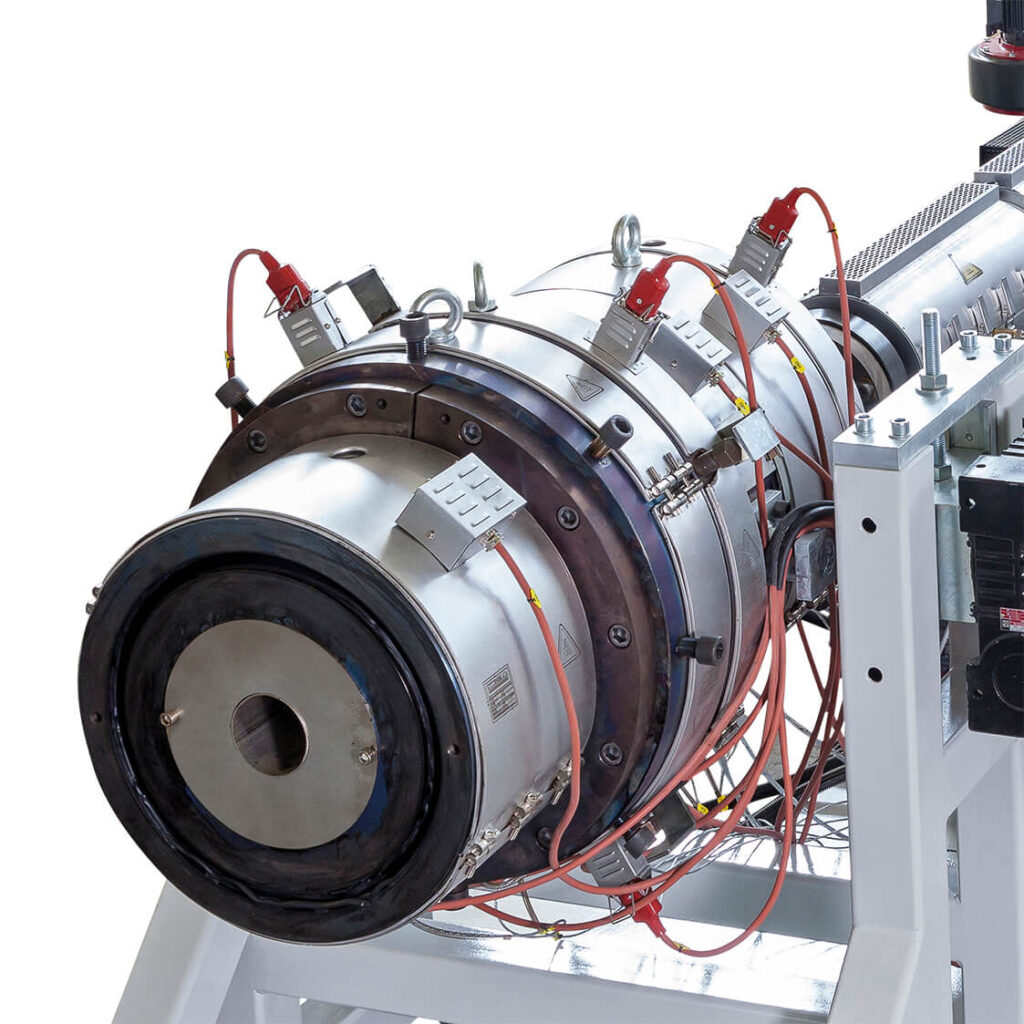

Pipe Heads

Single-Layer
ModelDiameter Range [mm]HDPE Max. Capacity [kg/h]PP-R Max. Capacity [kg/h]
MBK 63Ø16–63250250
MBK 160Ø16–160500400
MBK 250Ø50–250800600
MBK 400Ø110–4001000700
MBK 630Ø140–12001200800
3-Layer
ModelDiameter Range [mm]HDPE Max. Capacity [kg/h]PP-R Max. Capacity [kg/h]
MBK 110/3KØ16–110“100/150/100”“80/120/80”
MBK 160/3KØ16–160“150/400/150”“120/360/120”
MBK 250/3KØ50–250“400/600/600”“300/500/500”
MBK 450/3KØ140–450“500/800/1000”“400/350/800”
MBK 630/3KØ140–630“500/800/1000”“400/350/800”
  • Melt distribution channel system
  • Ceramic heaters

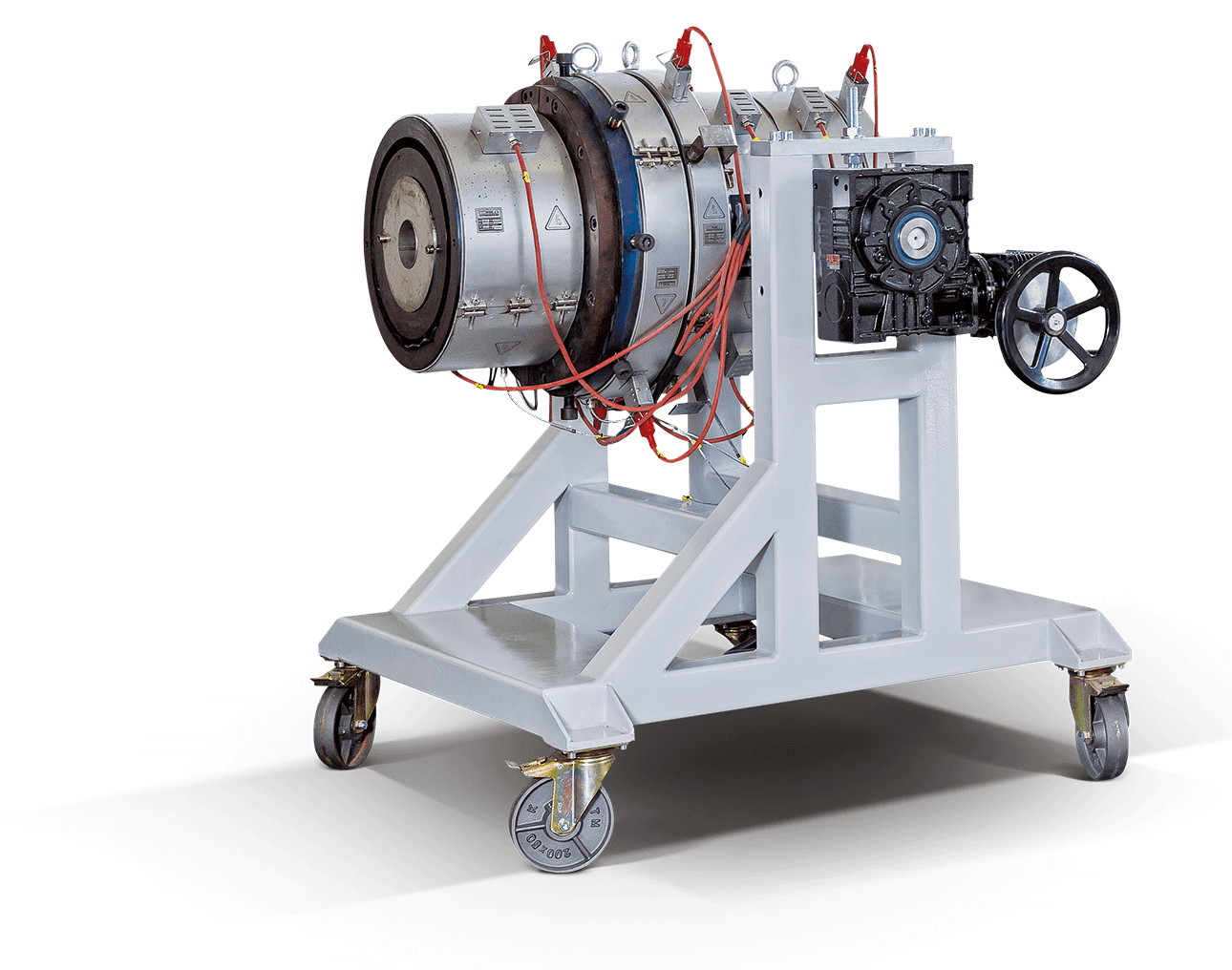

  • Transport trolley
  • Use of additional adapters for the production of larger pipe diameters
Advantages
  • Pipe heads are designed according to the requirements of the intended application.
  • All parts, including heat treatment, are manufactured within Mikrosan.
  • Thanks to their proven optimal design, they provide ease of operation and maintenance.
