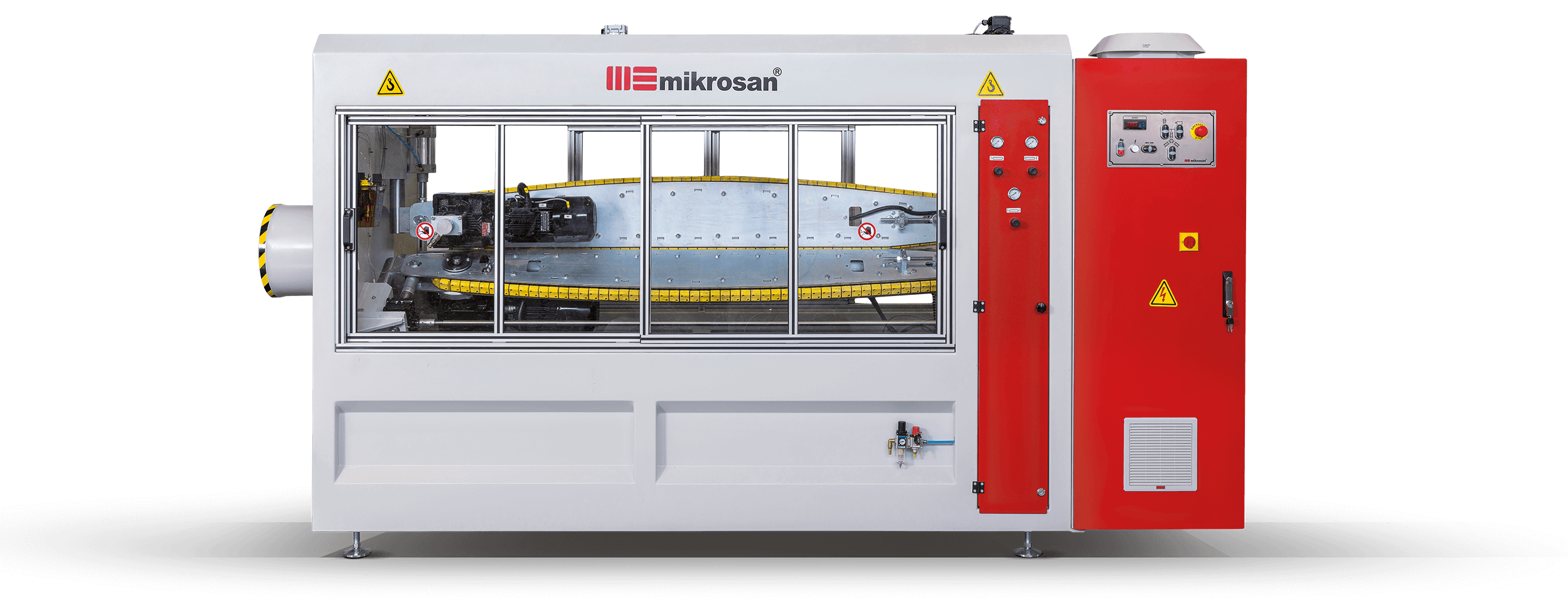

Pipe Haul-Off Units

Models

Model	Type	Caterpillar [pcs]	Contact Length [mm]	Diameter Range [mm]	Haul-Off Speed [m/min]	Haul-Off Force [N]
MBC 50-2K/500	Belt	2	700	Ø6–32	250	400
MBC 80-2K/500	Belt	2	500	Ø6–32	100	400
MBC 75-2K/1500	Pad	2	1500	Ø16–75	0.2–30	7000
MBC 160-3K/1500	Pad	3	1500	Ø40–160	0.2–30	12000
MBC 250-2K/1500	Pad	2	1500	Ø40–250	0.2–15	16000
MBC 250-4K/1500	Pad	4	1500	Ø50–250	0.2–15	30000
MBC 400-6K/1500	Pad	6	1500	Ø50–400	0.2–9	33000
MBC 630-8K/1500	Pad	8	1500	Ø180–630	0.2–4	56000

Motorized lower traverse position adjustment
Easy operation and adjustments
Design compliant with maximum operator safety
Components of Turkish and European origin

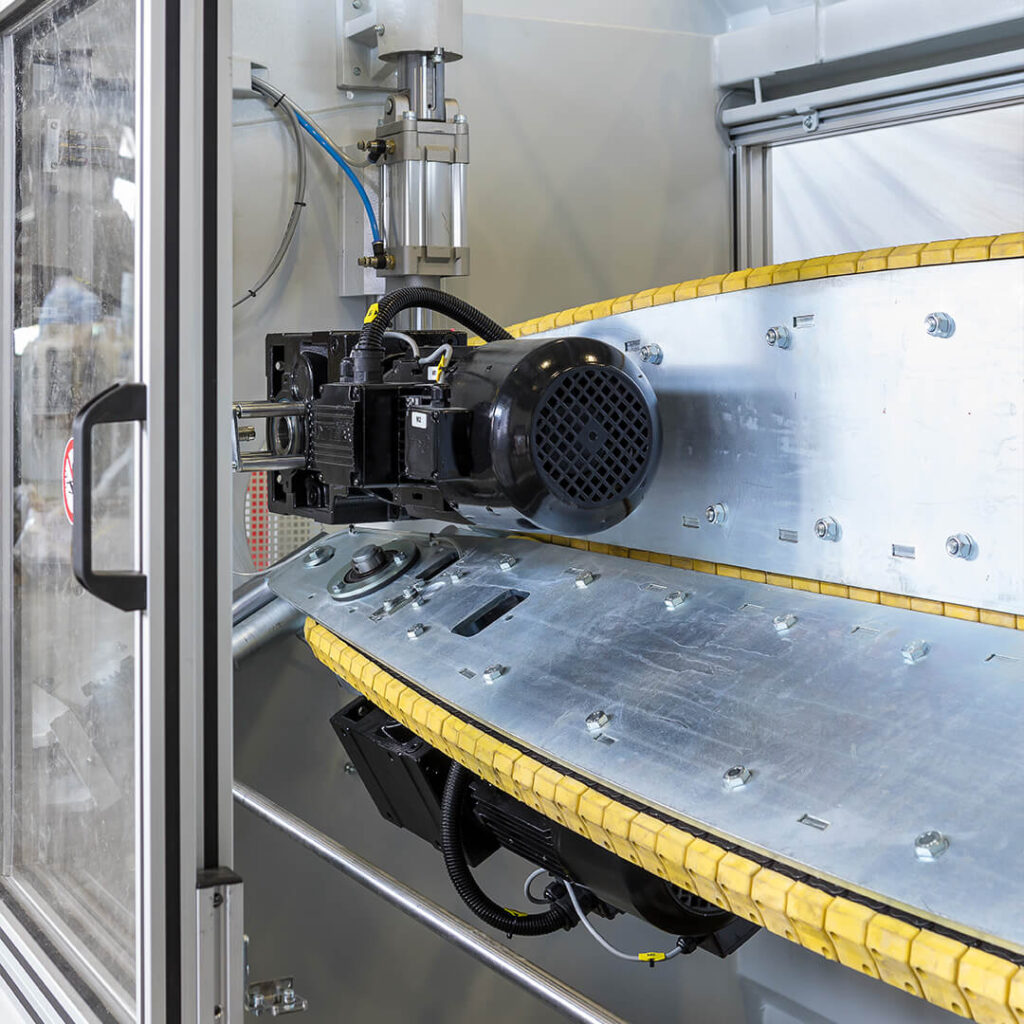

Special haul-off pads to prevent marks on the pipe surface
Haul-off speed adjustable in synchronization with extruder speed
Pipe production with meter weight control when operating together with the gravimetric dosing unit
