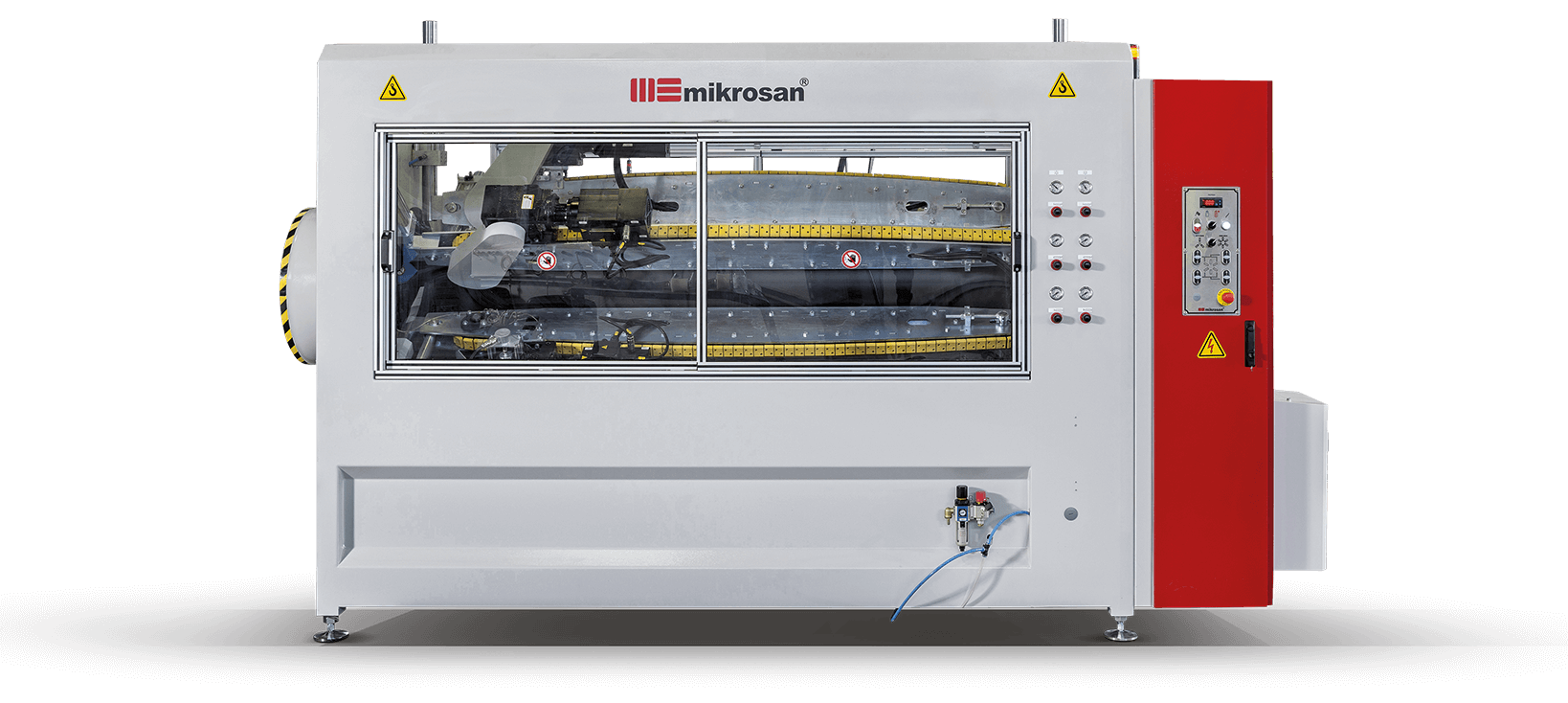

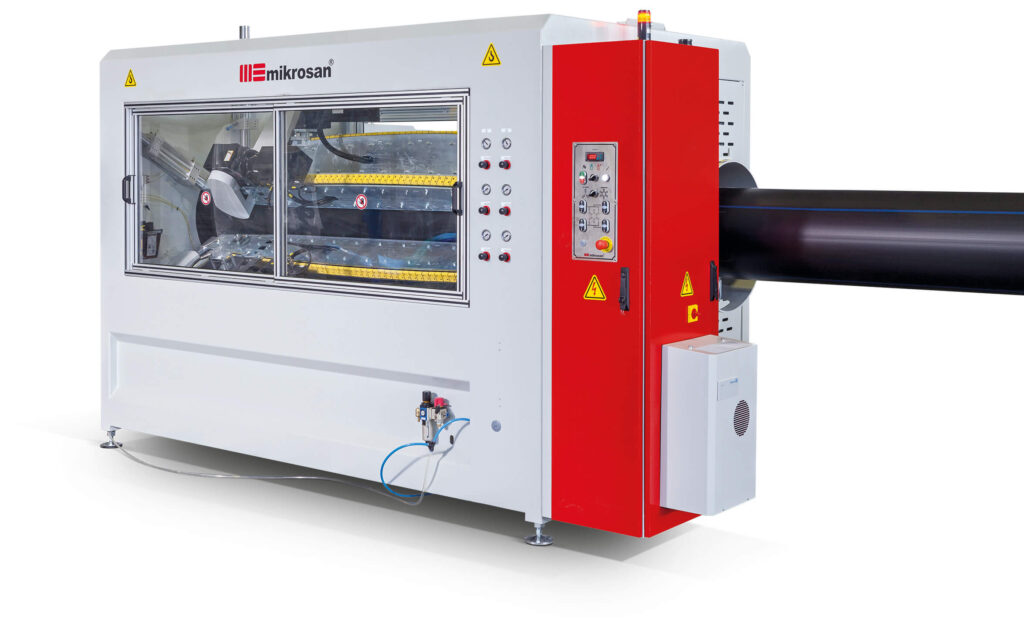

Pipe Haul-Off Units

Models

Model	Type	Caterpillar [pcs]	Contact Length [mm]	Diameter Range [mm]	Haul-Off Speed [m/min]	Haul-Off Force [N]
MBC 50-2K/500	Belt	2	700	Ø6–32	250	400
MBC 80-2K/500	Belt	2	500	Ø6–32	100	400
MBC 75-2K/1500	Pads	2	1500	Ø16–75	0.2–30	7000
MBC 160-3K/1500	Pads	3	1500	Ø40–160	0.2–30	12000
MBC 250-2K/1500	Pads	2	1500	Ø40–250	0.2–15	16000
MBC 250-4K/1500	Pads	4	1500	Ø50–250	0.2–15	30000
MBC 400-6K/1500	Pads	6	1500	Ø50–400	0.2–9	33000
MBC 630-8K/1500	Pads	8	1500	Ø180–630	0.2–4	56000

Motorlu alt travers pozisyon ayarı
Easy operation and adjustments
Design compliant with maximum operator safety
Components of Turkish and European origin
Special pulling pads to prevent marks on the pipe surface
Haul-off speed adjustable in synchronization with extruder speed
Pipe production with meter weight control when operating together with the gravimetric dosing unit
