Parallel Twin-Screw Extruders

Models

Model	L/D Ratio	Motor Power [kW]	Screw Speed [rpm]	PVC-U Capacity Min. [kg/h]	PVC-U Capacity Max. [kg/h]
MCV 55/20D	20	16	35	30	80
MCV 67/22D	22	27	35	60	140
MCV 68/25D	25	27	35	80	200
MCV 75/25D	25	33	35	120	250

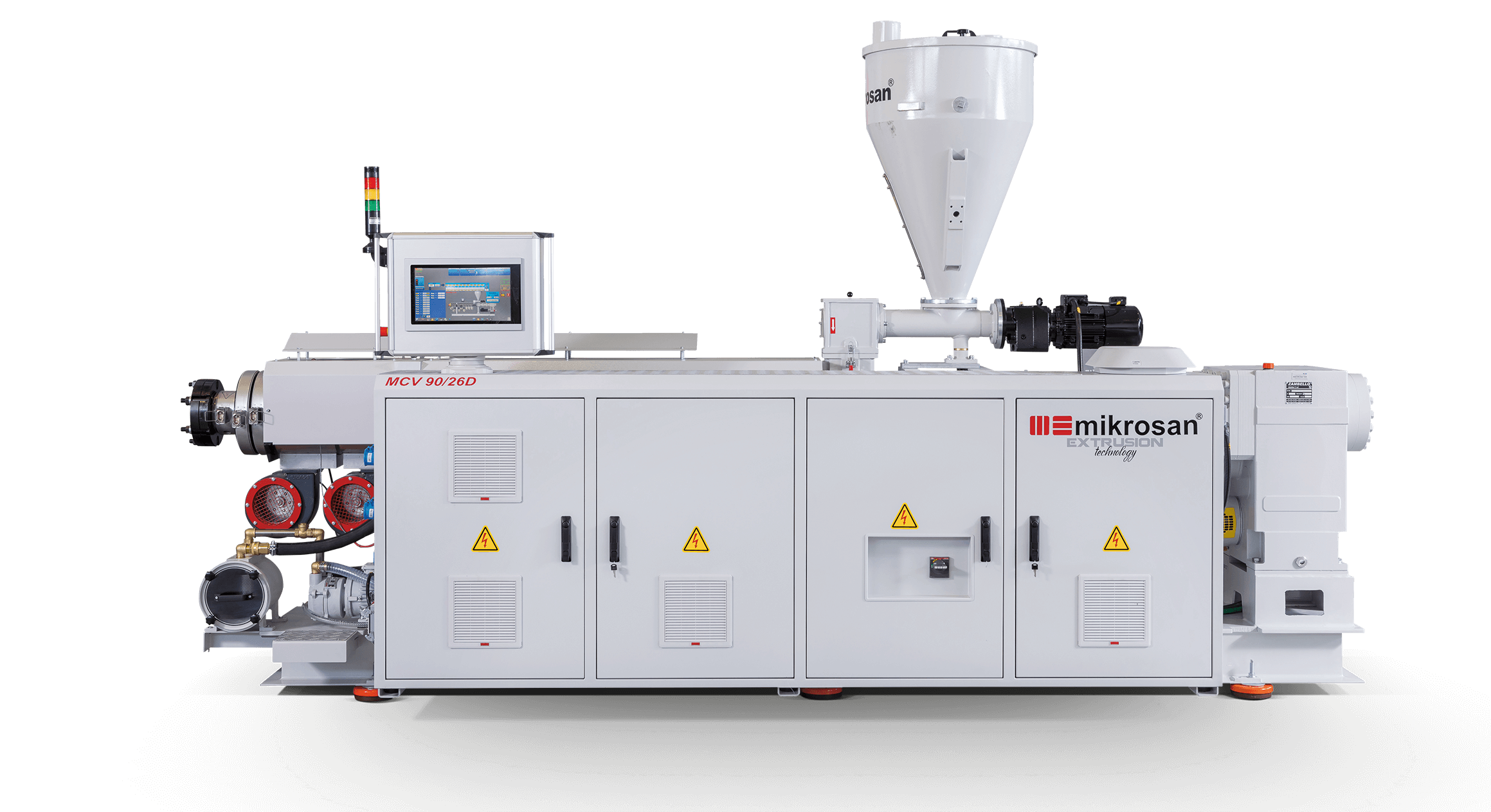

MCV 90/26D	26	53	35	160	400
MCV 90/33D	33	62	35	200	500
MCV 110/25D	25	79	32	300	700
MCV 135/33D	33	146	25	500	1200

Touchscreen control panel
User-friendly interface developed by Mikrosan
AC servo motor and driver
High-torque gearbox
Water-cooled screw temperature control
Degassing zone
Optimized dosing system for stable feeding of powder PVC material into the extruder
Components of Turkish and European origin

Advantages

The pipe series parallel twin-screw extruders feature proven, powerful machine technologies designed for continuous and high-efficiency production.
The screws and barrels are specially designed according to the application and customer requirements.
The screws and barrels are entirely manufactured within Mikrosan, including heat treatment and nitriding processes.
