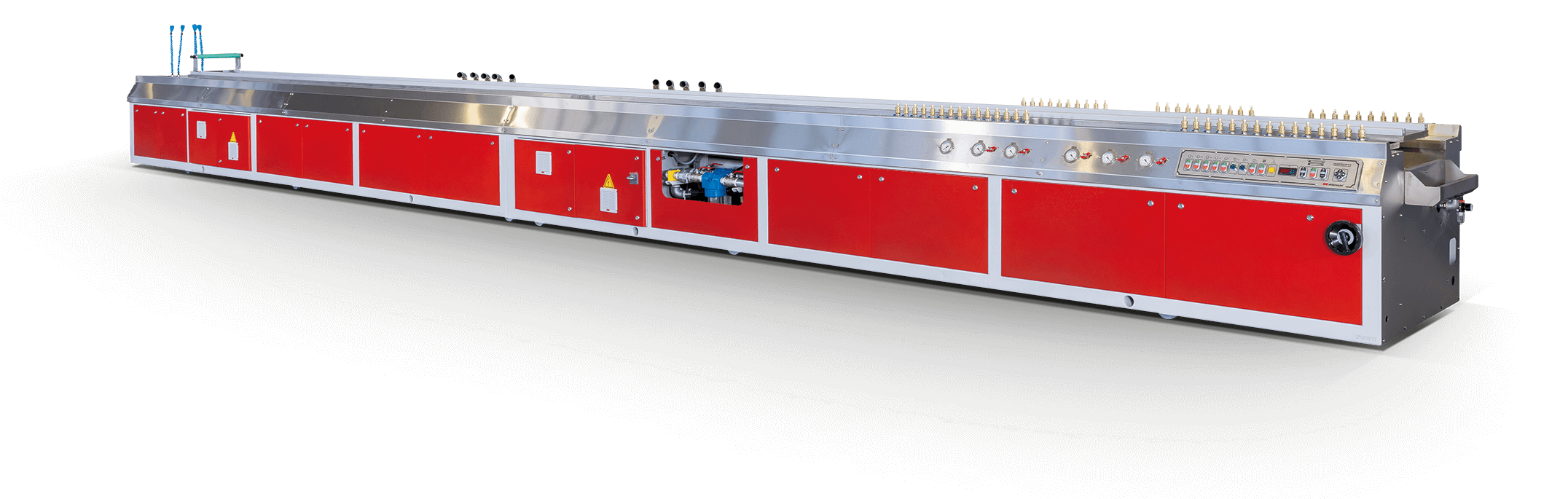

Calibration Table (Turbo Series)

Models

Feature	MKMT 5000	MKMT 6000	MKMT 9000	MKMT 12000
Calibrator Mounting Table Length [mm]	4630	5630	8630	11630
Standard Number of Pumps [pcs]	2	2	3	3
Vacuum Pump Power [kW]	5.5	5.5	5.5	5.5

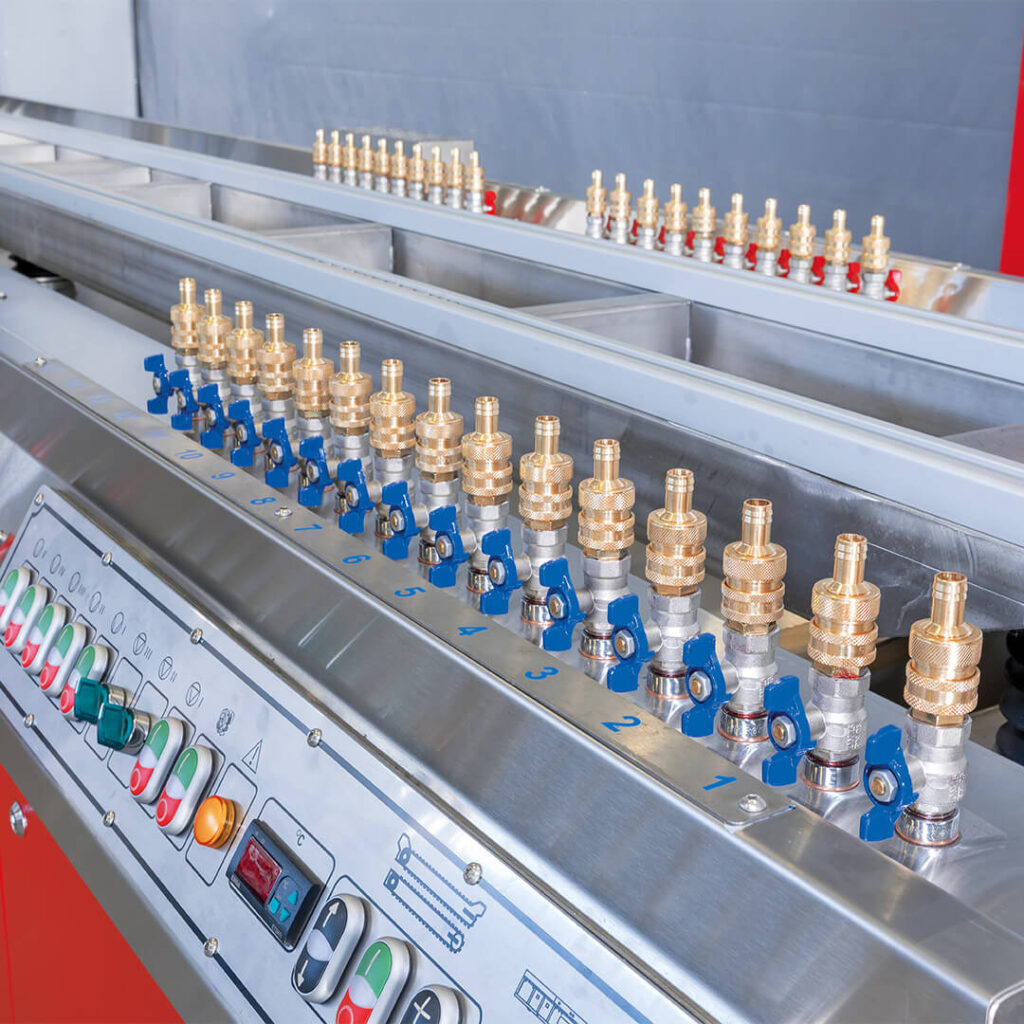

Number of Vacuum Connections per Pump	“10 x (½”)”	“10 x (½”)”	“10 x (½”)”	“10 x (½”)”
Standard Number of Cyclone Units [pcs]	1	1	1	1
Number of Vacuum Connections per Cyclone Unit	“3 x (1 ½”)”	“3 x (1 ½”)”	“5 x (1 ½”)”	“5 x (1 ½”)”

Optional

Inactive
