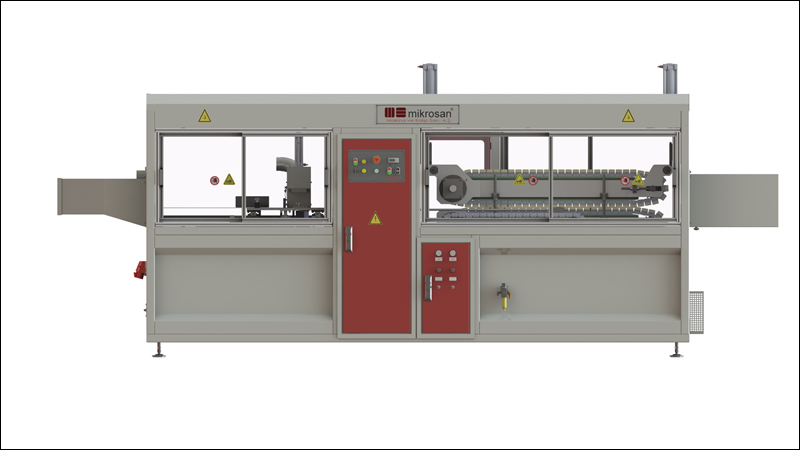

Profile Haul Off - Cutting Unit
|
 |
| |
-Suitable for different shape profile production
-Profile width up to 900 mm
-High pulling force without lose the shape of profiles
-Equipped with 2 caterpillars and saw or guillotine.
-Using vector motors for constant pulling force
-Automatic synchronisation with extrusion speed
-Very precise cutting lengths
|
| |
|
|
|
| |
-Completely closed and protected machine frame for safe operation
-Touch screen control panel
-User friendly software developed by Mikrosan
-AC servo motor and drive
-Upper caterpiller pressure on the profile is adjustable by pneumatic valve
-Pulling pads are produced with special rubber for long life time
-Equipped with belt or rubber pads and saw or guillotine
-Optional quick change system haul-off pads
-Pneumatic or motorized cutting tool movements
-All commercial parts made in Turkey and Europe
|
| |
|
 |
| |
-Special pulling pads are provided for different shape of profile.
-Designed according to occupational health and safety.
-Optional, upper caterpiller pressure on the profile is sensitive adjustable by pneumatic valve and motor.
-Chain conveyors with neutral rubber pads on chains that do no mark the profile.
-Synchronization with the extruder allows control of the extrusion speed.
-Smooth cutting surface of the cut profiles.
-Less maintenance needs for long production periods.
|
| |
|
|
 |
|
|
 |
 |
