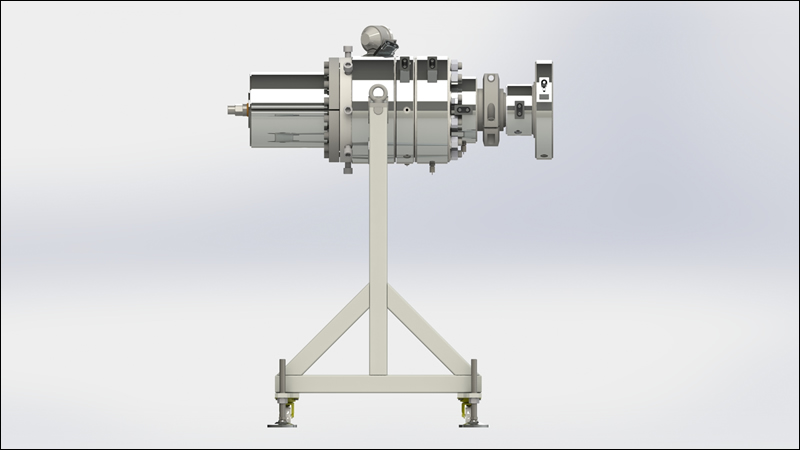

Pvc Single Layer Pipe Head
|
 |
| |
-Suitable for PVC-U and CPVC pipe production

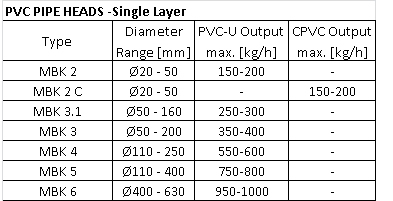

-Diameter range from Ø10 to Ø630 mm
-Output range from 200 kg/h to 1000 kg/h
-High melt homogenity
-Low pressure built up even with high outputs
|
| |
|
|
|
| |
-Melt channel distribution system
-Equipped with seramic heaters
-Pipe head carriage for easy movement
-Additional range adapter system can be used for bigger diameter production
|
| |
|
 |
| |
-Pipe heads are designed according to application requirements.
-All parts are manufactured in Mikrosan including heat treatment process.
-Easy maintenance thanks to the optimized and proven designed construction.
|
| |
|
|
 |
|
|
 |
 |
