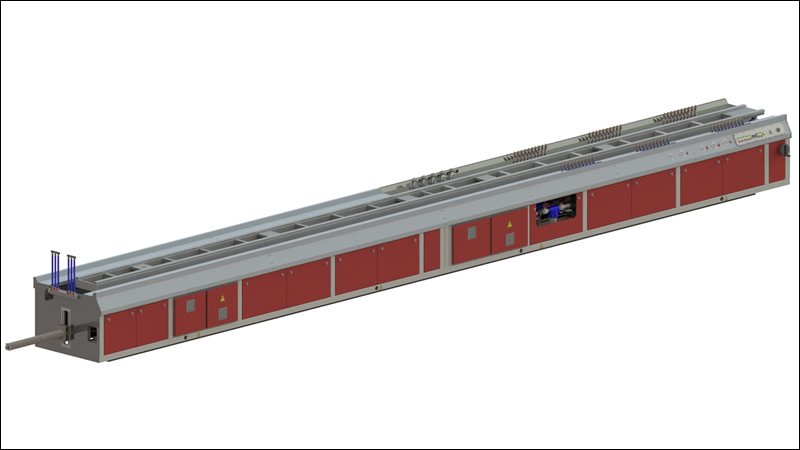

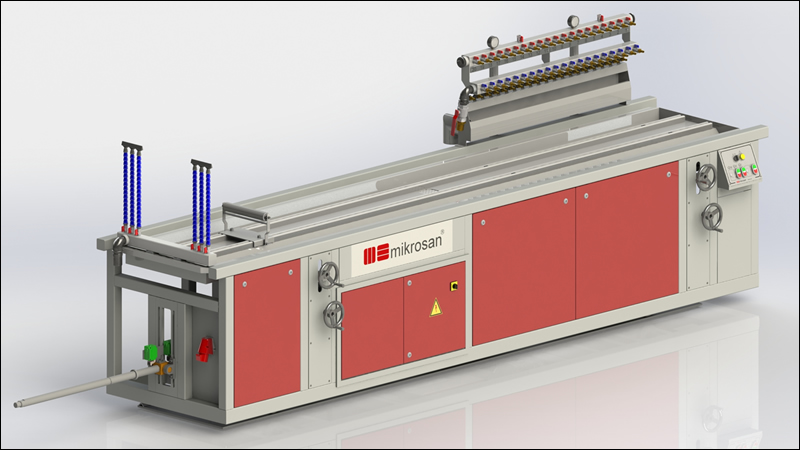

Calibration Table
|
 |
| |
-The lengths from 2 m to 16 m
-Vacuum pumps and vacuum connections provide a stable vacuum at low noise levels during production
-Robust construction
-The position of the calibrator can be adjusted precisely.
-Semi-closed or open water circulation provides precise water temperature regulation.
|
| |
|
|
|
| |
-Motorized movement for the tool position adjustment
-Main components contact with water are stainless steel
-User friendly control
-Air shower
-Quick change vacuum connectors
-Two water filters with by-pass connection
-All commercial parts made in Turkey and Europe
-Available only for turbo series calibration tables
|
| |
|
 |
| |
-Optional frequency controlled vacuum pump drives.
-Optional 7'' touch panel and user friendly software developed by Mikrosan.
-Optional closed water circulation system.
|
| |
|
|
 |
|
|
 |
 |
